Teltonika RUT240
Cost-efficient, configurable and small
RUT240 is the little 4G LTE router with many powerful options. Set up the RUT240 as a standalone router for IoT networking via ethernet, WiFi or digital I/O. Its failover protection functionality can automatically switch to 4G when your WAN is unavailable. It’s a great basic router for many use-cases that require advanced networking and security features.
Teltonika RUT240 Pros and Cons
- Small form-factor makes it easy to integrate.
- Automatic switching to 4G backup connection.
- Set up a secured WiFi hotspot for guest visitors.
- Larger external antennas can be installed, if needed.
- Ability to maintain an internet connection with Ping Reboot
- WiFi class N is three times slower than AC
- Single SIM slot doesn't allow for redundant 4G connection
Features
Speeds and connections
The RUT240 is a LTE CAT4 class router that supports speeds up to 100Mbps download and 50Mbps upload. Two port ethernet switches give you the opportunity to share the connection devices. The Wireless Access Point is class N which makes it suitable to support a few connected devices via WiFi. If you want to create a high-speed hotspot, we don’t recommend this router since it’s not class AC required for high speed connections.
Its WAN failover is an easy-to-use solution for many retail stores and small offices. When the internet connection fails, it automatically switches to the 4G back-up connection. This helps these businesses to continue working without interruption.
Well suited for applications in remote locations
One of the most important features for an 4G/LTE router is to keep a connection. The ‘Ping reboot’ gives this router the ability to maintain its connection by automatically rebooting after a set time. This feature is often overlooked, but imagine you can save a visit to the site to reboot the router.
The stick antennas that come with the router provide a good basic reception. But many users of the RUT240 integrate the router and require external antennas. This increases the reception even in remote areas. With rebooting options and great reception, there will be no more site visits when deploying these routers.
The right data plan for any RUT240 use-case
Flexible data for backup connection
When using the RUT240 router as WAN failover protection we recommend to use our flexible Pay-as-you-Go plan. A minimum monthly fee is charged to keep the connection alive and data charges only occur when the backup connection is used those few times a year.
Data plan for 4G/LTE as primary connection
Using cellular as the primary connection usually results in a consistent data usage per month. With our pooled data plans routers can share available data between them.
Data plan to remotely reach the router via PC or server
To reach the router remotely you can choose to set up a VPN from the router itself or build a secure tunnel from our mobile core to your endpoint. This will keep your traffic from the public internet and allows you to remotely access your router without a public fixed IP address. Our many VPN solutions will fit any project and budget.
Documentation
Firmware Updates
Keep your Teltonika RUT240 up-to-date with the latest firmware. Go to the Teltonika firmware libary.
Teltonika RUT240 User manual
Discover all the features and functionalities of the Teltonika RUT240. Find all user guides in the Teltonika manual libary.
Technical Specifications
Hardware
Mobile 4G (LTE) Cat 4 DL up to 150 Mbps, UL up to 50Mbps; DC-HSPA+; UMTS; TD-SCDMA; EDGE; GPRS
CPU Atheros Hornet, MIPS 24Kc, 400 MHz
Memory 16 MBytes Flash, 128 MBytes DDR2 RAM
Ethernet 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
Power supply 9 – 30 VDC, 4 pin DC connector
PoE (passive) Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at
Inputs/Outputs 1 x Digital Input, 1 x Digital Open Collector Output on power connector

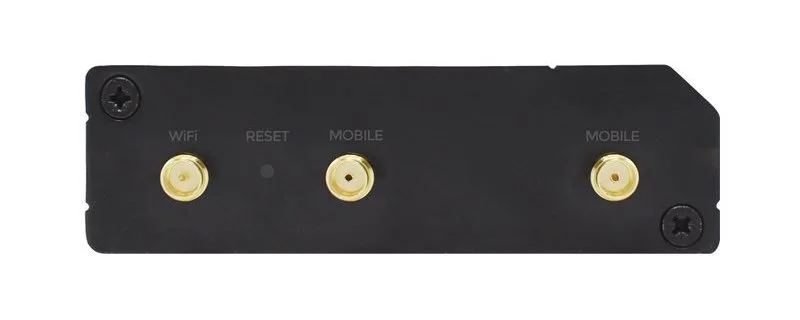

Connectors 1 x 4 pin DC, 2 x Ethernet, 2 x Mobile SMA, 1 x WiFi RP-SMA
SIM 1 x external SIM holder
Status LEDs 2 x connection type status, 5 x connection strength, 2 x LAN status, 1 x Power
Operating temperature -40 °C to 75 °C Housing Aluminium housing, plastic panels
Dimensions 83 mm x 74 mm x 25 mm
Weight 125 g
Software
Operating system RutOS (OpenWrt based Linux OS)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP
Networking features NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Unique networking features VLAN, Load balancing, Mobile quota control, WEB Filter, Network Backup, Auto Failover
Connection monitoring Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection
Authentication Pre-shared key, digital certificates, X.509 certificates
Keep settings Update FW without losing current configuration
Monitoring & Management WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
Warranty The RUT240 includes two years warranty as standard. Extended warranty available upon request.
Teltonika RUT240 Alternatives
Frequency Band Support
Different countries use different frequencies and bands. Make sure to use the right version of the Teltonika RUT240 in each country of deployment. Please contact us if you have any hesitations about which version to use.
RUT240 Global
4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
4G (LTE-TDD): B38, B39, B40, B41
3G: B1, B2, B4, B5, B6, B8, B19
2G: B2, B3, B5, B8
RUT240 North America (AT&T)
4G (LTE-FDD): B2, B4, B12
3G: B2, B4, B5
RUT240 Europe, the Middle East, Africa, Korea, Thailand, India
4G (LTE-FDD): B1, B3, B5, B7, B8, B20
4G (LTE-TDD): B38, B40, B41
3G: B1, B5, B8
2G: B3, B8
RUT240 South America, Australia, New Zealand, Taiwan
4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B28
4G (LTE-TDD): B40
3G: B1, B2, B5, B8
2G: B2, B3, B5, B8
